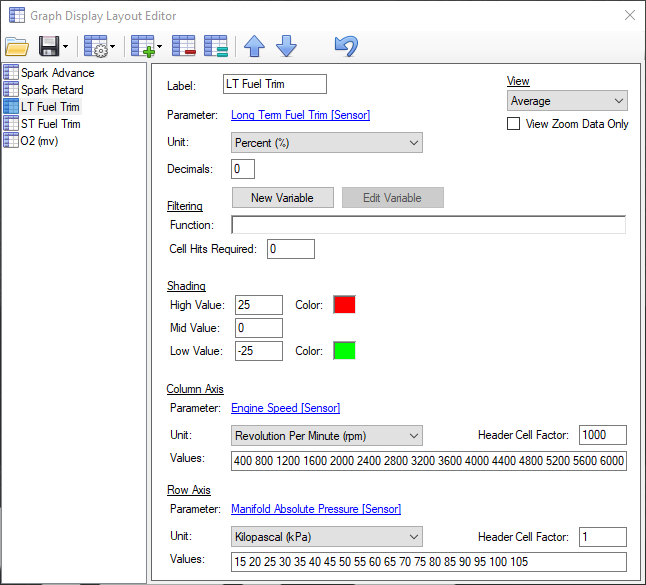

Graph Display Layout Editor

The layout editor is used to add, remove. and configure individual graphs. To open this window:

1.

Right click on the graph display.

2.

Select Graphs Layout.

NOTE: Changes take effect immediately (without saving your changes to file).

Toolbar

	Open Individual Graphs or All Graphs
	To save the graph selected in the left column, click this icon and then choose Selected Graph. To save all graphs in the current layout, click this icon and the choose All Graphs.
	Load one of the pre-defined graph layouts.
	Add a new graph. To complete graph setup, you must configure the graph's parameters.
	Delete the graph selected in the column on the left.
	Duplicate the graph selected in the column on the left.
	Move the graph selected in the left column upwards in the list.
	Move the graph selected in the left column downwards in the list.
	Undo all changes to this graph layout.

Adding a Table

1.

Click and select Add Table.

2.

Click the Parameter link. The Parameter Selector window appears. See Selecting a Parameter for more information on this window.

3.

Double-click on the parameter whose values will be mapped in the cells of the new table. A blank table should now appear on the Graph panel.

NOTE: Your channels list must include a channel that provides the selected parameter. If you don't have a channel to do this, VCM Scanner won't query the vehicle or the external input for this data and may not know how to transform the raw data received into meaningful values.

4.

Complete graph setup by configuring the graph's remaining parameters.

Adding a Histogram

1.

Click and select Add Histogram.

2.

Click the Parameter link in the Column Axis group. The Parameter Selector window appears. See Selecting a Parameter for more information on this window.

3.

Double-click on the parameter whose distribution will be plotted by this histogram.

NOTE: Your channels list must include a channel that provides the selected parameter. If you don't have a channel to do this, VCM Scanner won't query the vehicle or the external input for this data and may not know how to transform the raw data received into meaningful values.

4.

Select the Unit for the parameter.

5.

In the Values box, enter the values for the column labels displayed on the bottom of the histogram, separated. For example, entering "400 800 1200" would create histogram with three bars centered on 400, 800, and 1200.

6.

Enter a name for this histogram in the Label field.

7.

If you want to filter the data included in the histogram, define the filter in the Function box. See Expression Filtering for more information in defining filter functions.

Editing an Existing Graph

To modify a graph that is already included in this layout:

1.

Select the name of the graph in the column on the left.

2.

Modify the graph parameters displayed on the right.
